FreeIPA 简介
在《Rocky Linux 9 从入门到精通 008 —— LDAP 账号管理(理论篇)》一文中,我们提到市场上有许多实现 LDAP 服务相关产品。本章节将以开源产品 FreeIPA 为例进行讲解。
官方简介:
FreeIPA 是一个信息安全管理集成解决方案,它结合了 Linux(基于 Fedora)、389 目录服务器、MIT Kerberos、NTP、DNS 以及 Dogtag 证书系统等多种组件。并且为用户提供了网页界面和命令行两种管理方式。
简单来说,FreeIPA 是专为 Linux/UNIX 网络环境设计的统一身份认证解决方案。通过 FreeIPA 服务器,管理员可以集中管理用户、用户组、主机等与网络安全相关的信息,实现统一的身份认证、授权以及账号管理。
FreeIPA 基于众所周知的开源组件和标准协议开发,特别注重管理的简便性以及安装、配置任务的自动化。
多个 FreeIPA 服务器可以轻松配置在同一个 FreeIPA 域中,以实现数据的冗余备份和系统的横向扩展。389 Directory Server 是 FreeIPA 的核心数据库,提供完整的多主 LDAPv3 目录服务。MIT Kerberos KDC 则负责实现单点登录(Single-Sign-on)功能。Dogtag 项目的集成证书颁发机构(CA)则进一步增强了认证能力。可选地,FreeIPA 还可借助内置的 ISC Bind 服务器来管理域名服务(DNS)。
关于访问控制、权限分配和其他网络管理任务,FreeIPA 允许管理员通过网页界面或ipa
命令行工具进行集中管理,大大简化了日常运维的流程。
服务器资源规划
由于 FreeIPA 需要 DNS 服务器提供域名解析功能,因此本次我们将继续使用之前搭建的 CoreDNS 服务器来承担域名解析的任务。
节点资源规划:
主机名 | IP | 作用 |
---|---|---|
CoreDNS-001 | 192.168.1.1 | CoreDNS 服务器主节点 |
CoreDNS-002 | 192.168.1.2 | CoreDNS 服务器从节点 |
ldap-001 | 192.168.1.3 | LDAP 服务器主节点 |
ldap-002 | 192.168.1.4 | LDAP 服务器从节点 |
Client-001 | 192.168.3.1 | LDAP 客户端节点 |
DNS Zone 配置信息:
配置名称 | 值 |
---|---|
Zone(本地区域) | rockylinux.lan |
CoreDNS Zone 配置参考:Rocky Linux 9 从入门到精通007– DNS管理(Zone 篇)
注意:添加以上主机名与 IP 的 A 记录解析。
FreeIPA 服务器部署
# 安装 FreeIPA
[root@ldap-001 ~]# dnf install -y ipa-server
# 初始化
[root@ldap-001 ~]# ipa-server-install
# 安装日志存放位置
The log file for this installation can be found in /var/log/ipaserver-install.log
==============================================================================
This program will set up the IPA Server.
Version 4.12.2
# 安装包含的组件,默认 * 星号都是要安装的
This includes:
* Configure a stand-alone CA (dogtag) for certificate management
* Configure the NTP client (chronyd)
* Create and configure an instance of Directory Server
* Create and configure a Kerberos Key Distribution Center (KDC)
* Configure Apache (httpd)
* Configure SID generation
* Configure the KDC to enable PKINIT
# 按回车键,开始安装
To accept the default shown in brackets, press the Enter key.
# 是否配置集群的 bind DNS,因为木子使用的 CoreDNS,所以使用默认设置 no
Do you want to configure integrated DNS (BIND)? [no]:
Enter the fully qualified domain name of the computer
on which you''re setting up server software. Using the form
<hostname>.<domainname>
Example: master.example.com
# 设置服务器主机名,采用默认设置
Server host name [ldap-001.rockylinux.lan]:
The domain name has been determined based on the host name.
# 域名配置,使用 CoreDNS 上配置的 Zone
Please confirm the domain name [rockylinux.lan]:
# kerberos 域名设置,采用默认的大写
The kerberos protocol requires a Realm name to be defined.
This is typically the domain name converted to uppercase.
Please provide a realm name [ROCKYLINUX.LAN]:
# 设置 LDAP 目录管理员密码(与 Windows Active Directory 还原目录密码类似)
Certain directory server operations require an administrative user.
This user is referred to as the Directory Manager and has full access
to the Directory for system management tasks and will be added to the
instance of directory server created for IPA.
The password must be at least 8 characters long.
Directory Manager password:
Password (confirm):
# 设置 IPA 服务器管理员 admin 的密码
The IPA server requires an administrative user, named 'admin'.
This user is a regular system account used for IPA server administration.
IPA admin password:
Password (confirm):
# IPv6 不可用,忽略
Invalid IP address fe80::42:27ff:fe50:c16 for ldap-001.rockylinux.lan: cannot use link-local IP address fe80::42:27ff:fe50:c16
Invalid IP address fe80::486a:e224:31e4:d1fc for ldap-001.rockylinux.lan: cannot use link-local IP address fe80::486a:e224:31e4:d1fc
Trust is configured but no NetBIOS domain name found, setting it now.
# 设置 NetBIOS 域名
Enter the NetBIOS name for the IPA domain.
Only up to 15 uppercase ASCII letters, digits and dashes are allowed.
Example: EXAMPLE.
NetBIOS domain name [ROCKYLINUX]:
# 配置是否启用 chrony 服务器,因为木子有单独的 chrony 时间服务器,所以这里使用默认 no
Do you want to configure chrony with NTP server or pool address? [no]:
# 输出前面的设置,并确认没有问题后,输入 yes,开始安装
The IPA Master Server will be configured with:
Hostname: ldap-001.rockylinux.lan
IP address(es): 192.168.1.3
Domain name: rockylinux.lan
Realm name: ROCKYLINUX.LAN
The CA will be configured with:
Subject DN: CN=Certificate Authority,O=ROCKYLINUX.LAN
Subject base: O=ROCKYLINUX.LAN
Chaining: self-signed
Continue to configure the system with these values? [no]: yes
# 开始安装,整体过程需要几分钟
The following operations may take some minutes to complete.
Please wait until the prompt is returned.
.....(略)
# 出现以下信息,说明安装成功
Next steps:
# 1. 需要配置防火墙开启以下端口
1. You must make sure these network ports are open:
TCP Ports:
* 80, 443: HTTP/HTTPS
* 389, 636: LDAP/LDAPS
* 88, 464: kerberos
* 53: bind
UDP Ports:
* 88, 464: kerberos
* 53: bind
* 123: ntp

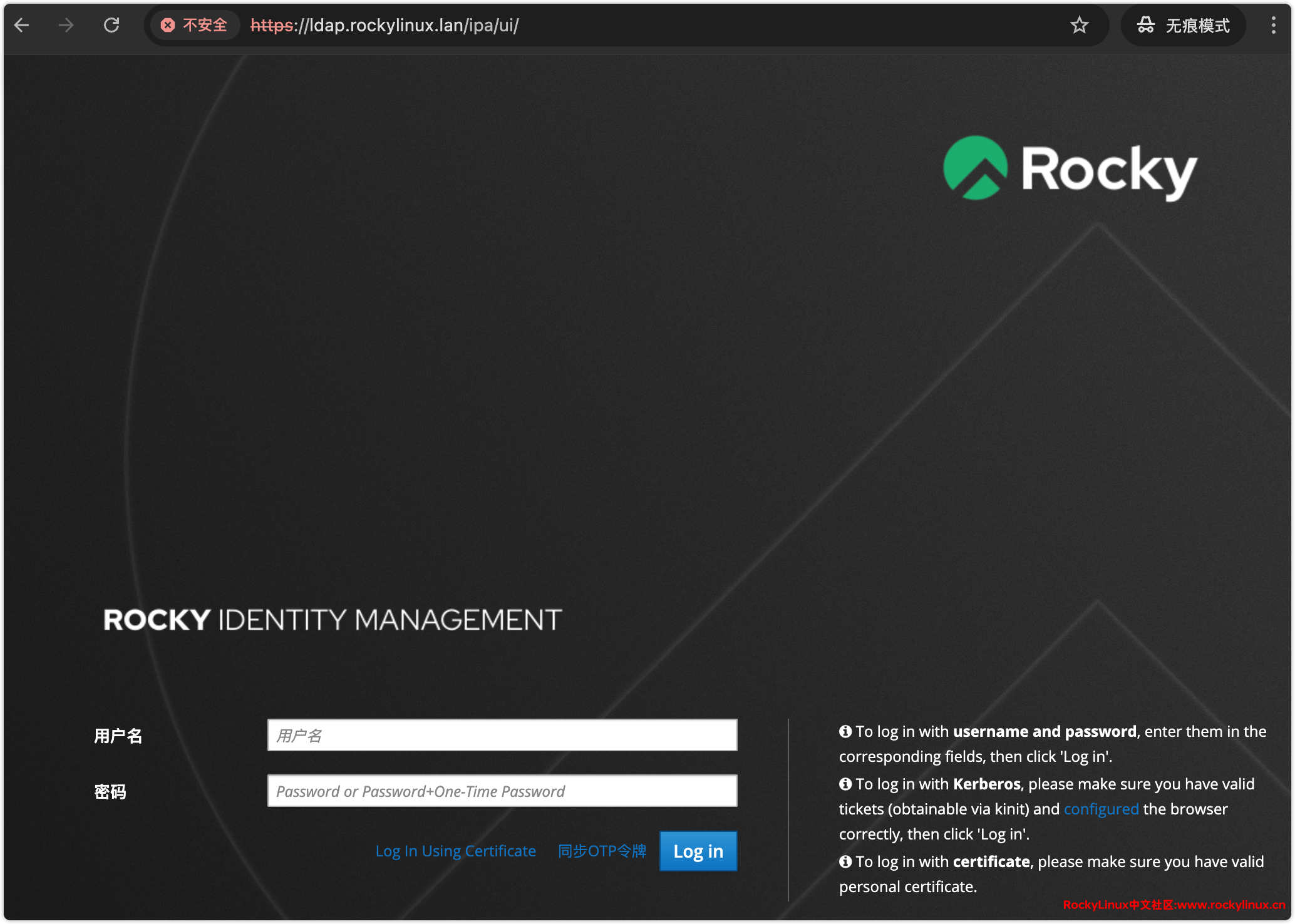

# 2. 可以通过 ipa 命令或者 WebUI 进行用户、组、计算机等管理
2. You can now obtain a kerberos ticket using the command: 'kinit admin'
This ticket will allow you to use the IPA tools (e.g., ipa user-add)
and the web user interface.
Be sure to back up the CA certificates stored in /root/cacert.p12
These files are required to create replicas. The password for these
files is the Directory Manager password
The ipa-server-install command was successful
# 如果您在安装过程中,出现任何异常问题,可以使用以下命令卸载,再重装安装
[root@ldap-001 ~]# ipa-server-install --uninstall
# 升级
[root@ldap-001 ~]# ipa-server-upgrade
防火墙配置
FreeIPA 常用端口如下:
服务 | 端口 | 协议 | 备注 |
---|---|---|---|
HTTP/HTTPS | 80,443 | TCP | FreeIPA WebUI |
LDAP/LDAPS | 389,636 | TCP | 其它客户端通过 LDAP 或 LDAPS 协议与服务器端进行认证 |
Kerberos | 88,464 | TCP 和 UDP | Kerberos 客户端与服务器端加密通讯认证 |
DNS | 53 | TCP 和 UDP | 木子这里未使用 FreeIPA 自带的 DNS,所以不需要配置此端口。 |
NTP | 123 | UDP | 木子这里未使用 FreeIPA 自带的 NTP,所以不需要配置此端口。 |
Rocky Linux 提供了 freeipa-4
防火墙服务,用于开启 FreeIPA 所需的相关端口,包括:http、https、kerberos、kpasswd、ldap、ldaps 等。具体端口信息可参考:/usr/lib/firewalld/services/freeipa-4.xml
。此外,也可以根据实际需求,单独设置某个服务端口,例如:freeipa-ldap
或 freeipa-ldaps
。
[root@ldap-001 ~]# cat /usr/lib/firewalld/services/freeipa-4.xml
<?xml version="1.0" encoding="utf-8"?>
<service>
<short>FreeIPA 4 server</short>
<description>FreeIPA is an integrated identity and authentication solution with Kerberos, LDAP, PKI, and web UI. Enable this option if you plan to provide a FreeIPA server. Enable the 'dns' service if this FreeIPA server provides DNS services, 'ntp' service if this FreeIPA server provides NTP services, and 'freeipa-trust' for cross-forest trusts with Active Directory.</description>
<!-- CRL and OCSP -->
<include service="http"/>
<!-- API and web UI -->
<include service="https"/>
<include service="kerberos"/>
<include service="kpasswd"/>
<include service="ldap"/>
<include service="ldaps"/>
</service>
[root@ldap-001 ~]# ls -l /usr/lib/firewalld/services/freeipa-*
-rw-r--r-- 1 root root 709 Feb 4 17:33 /usr/lib/firewalld/services/freeipa-4.xml
-rw-r--r-- 1 root root 488 Feb 4 17:33 /usr/lib/firewalld/services/freeipa-ldap.xml
-rw-r--r-- 1 root root 489 Feb 4 17:33 /usr/lib/firewalld/services/freeipa-ldaps.xml
-rw-r--r-- 1 root root 242 Feb 4 17:33 /usr/lib/firewalld/services/freeipa-replication.xml
-rw-r--r-- 1 root root 657 Feb 4 17:33 /usr/lib/firewalld/services/freeipa-trust.xml
# 开启所有端口
[root@ldap-001 ~]# firewall-cmd --permanent --add-service=freeipa-4
# 只启用 ldap 认证端口
[root@ldap-001 ~]# firewall-cmd --permanent --add-service=freeipa-ldap
[root@ldap-001 ~]# firewall-cmd --permanent --add-service=freeipa-ldaps
# 生效配置
[root@ldap-001 ~]# firewall-cmd --reload
# 确保配置生效
[root@ldap-001 ~]# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: ens18
sources:
services: cockpit dhcpv6-client freeipa-4 freeipa-ldap freeipa-ldaps ssh
ports:
protocols:
forward: yes
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
SELinux 配置
如果您处于内网环境且对安全性要求不高,可以选择禁用 SELinux。若需要启用 SELinux,也可以参考官方文档:Integration_with_SELinux — FreeIPA documentation 进行相应配置。
验证服务可用性
FreeIPA 服务的可用性可以从两个维度进行验证:
- 通过 systemctl 检查各相关服务本身的运行状态;
- 确认 FreeIPA 的 LDAP 服务能否正常提供查询和认证功能。
检查服务状态
# Directory Service(注意 dirsrv@REALM 名称)
systemctl status [email protected]
# krb5kdc Service
systemctl status krb5kdc
# kadmin Service
systemctl status kadmin
# httpd Service
systemctl status httpd
# ipa-custodia Service
systemctl status ipa-custodia
# pki-tomcatd Service
systemctl status [email protected]
# ipa-otpd Service
systemctl status ipa-otpd.socket
# ipa-ccache-sweep Service
systemctl status ipa-ccache-sweep.service
# 确保以上服务的端口都正常监听
[root@ldap ~]# netstat -tulnp | grep -E "389|636|80|443|88|464|8080|8443"
tcp 0 0 0.0.0.0:749 0.0.0.0:* LISTEN 1480/kadmind
tcp 0 0 0.0.0.0:464 0.0.0.0:* LISTEN 1480/kadmind
tcp 0 0 0.0.0.0:88 0.0.0.0:* LISTEN 1471/krb5kdc
tcp6 0 0 :::749 :::* LISTEN 1480/kadmind
tcp6 0 0 :::636 :::* LISTEN 1433/ns-slapd
tcp6 0 0 :::443 :::* LISTEN 1490/httpd
tcp6 0 0 :::389 :::* LISTEN 1433/ns-slapd
tcp6 0 0 :::464 :::* LISTEN 1480/kadmind
tcp6 0 0 :::8443 :::* LISTEN 1801/java
tcp6 0 0 :::88 :::* LISTEN 1471/krb5kdc
tcp6 0 0 :::80 :::* LISTEN 1490/httpd
tcp6 0 0 127.0.0.1:8009 :::* LISTEN 1801/java
tcp6 0 0 127.0.0.1:8005 :::* LISTEN 1801/java
tcp6 0 0 ::1:8009 :::* LISTEN 1801/java
tcp6 0 0 :::8080 :::* LISTEN 1801/java
udp 0 0 0.0.0.0:464 0.0.0.0:* 1480/kadmind
udp 0 0 0.0.0.0:88 0.0.0.0:* 1471/krb5kdc
udp6 0 0 :::464 :::* 1480/kadmind
udp6 0 0 :::88 :::* 1471/krb5kdc
# 查看 ipa 服务状态
[root@ldap-001 ~]# systemctl status ipa
● ipa.service - Identity, Policy, Audit
Loaded: loaded (/usr/lib/systemd/system/ipa.service; enabled; preset: disabled)
Active: active (exited) since Tue 2025-06-01 11:42:31 CST; 4h 5min ago
Main PID: 848 (code=exited, status=0/SUCCESS)
CPU: 4.781s
Jun 1 11:41:48 ldap-001.rockylinux.lan systemd[1]: Starting Identity, Policy, Audit...
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: ipa: INFO: The ipactl command was successful
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting Directory Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting krb5kdc Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting kadmin Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting httpd Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting ipa-custodia Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting pki-tomcatd Service
Jun 1 11:42:31 ldap-001.rockylinux.lan ipactl[848]: Starting ipa-otpd Service
Jun 1 11:42:31 ldap-001.rockylinux.lan systemd[1]: Finished Identity, Policy, Audit.
# 确保所有服务状态是正常的
[root@ldap-001 ~]# ipactl status
Directory Service: RUNNING
krb5kdc Service: RUNNING
kadmin Service: RUNNING
httpd Service: RUNNING
ipa-custodia Service: RUNNING
pki-tomcatd Service: RUNNING
ipa-otpd Service: RUNNING
ipa: INFO: The ipactl command was successful
检查服务功能
除了检查 FreeIPA 相关服务是否正常运行外,还可以通过以下命令进一步验证各核心功能:
- 使用
ldapsearch
命令进行LDAP 查询,以确认 Directory Service 是否工作正常; - 使用
kinit
命令获取 Kerberos 票据,以验证 krb5kdc 和 kadmin 服务的可用性。
# DN 可用性验证
[root@ldap-001 ~]# ldapsearch -x dc=rockylinux
# extended LDIF
# LDAPv3
# base <dc=rockylinux,dc=lan> (default) with scope subtree
# filter: dc=rockylinux
# requesting: ALL
# rockylinux.lan
dn: dc=rockylinux,dc=lan
objectClass: top
objectClass: domain
objectClass: pilotObject
objectClass: domainRelatedObject
objectClass: nisDomainObject
dc: rockylinux
info: IPA V2.0
nisDomain: rockylinux.lan
associatedDomain: rockylinux.lan
# search result
search: 2
result: 0 Success
# numResponses: 2
# numEntries: 1
# Kerberos 票据获取(验证 krb5kdc、kadmin)
[root@ldap-001 ~]# kinit admin
Password for [email protected]:
[root@ldap-001 ~]# klist
Ticket cache: KCM:0
Default principal: [email protected]
Valid starting Expires Service principal
06/01/25 19:46:59 06/02/25 19:08:33 krbtgt/[email protected]
用户管理
过去,用户管理常常需要借助 ldapadd
、ldaplist
、ldapmodify
、ldapdelete
等命令,操作流程繁琐且复杂(详细参考 LDAP 名称服务的设置和管理)。现在,FreeIPA 提供了统一的 ipa

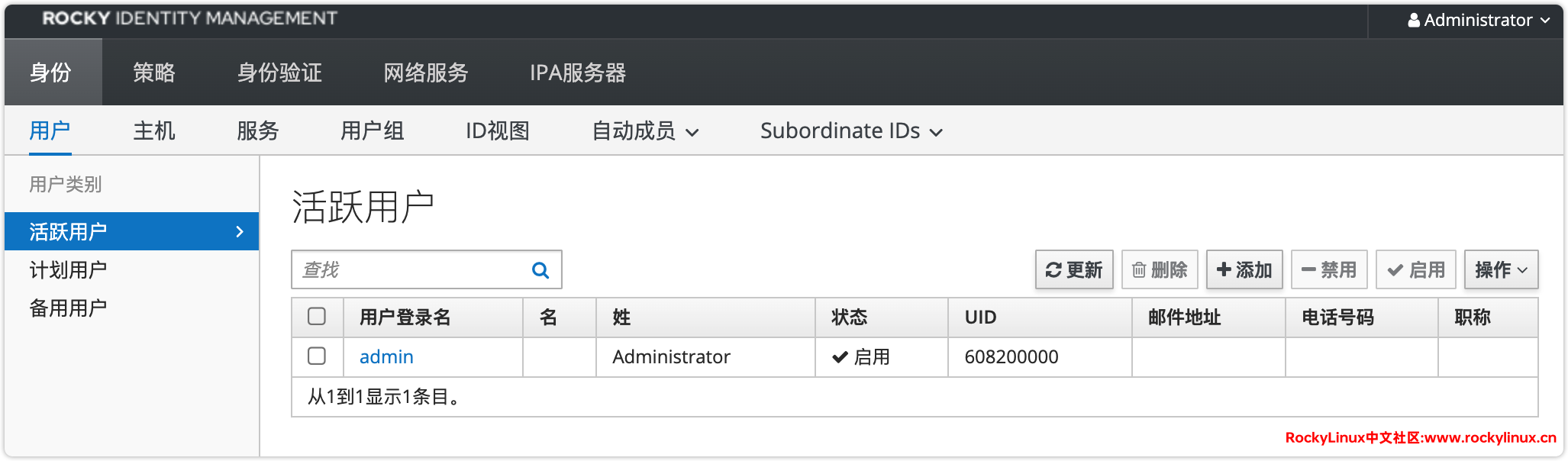

命令行工具,大幅简化了用户、主机、服务、DNS、证书等的集中管理,有效提升了系统运维效率,并降低了 LDAP 管理的门槛。此外,FreeIPA 还支持 Web 管理界面(Web UI),为习惯图形化操作的管理员提供了便利。
使用 ipa
命令前,需要通过 Kerberos 进行管理员身份验证。具体操作是在 ldap.rockylinux.lan
服务器上执行 kinit admin
,输入安装 FreeIPA 时设定的管理员密码,获取 Kerberos 票据后即可进行各种管理操作。
# 所有用户管理命令
[root@ldap-001 ~]# ipa help commands | grep user- | grep -Ev "stage|idoverrideuser"
user-add 添加新用户
user-add-cert 向用户条目中添加一个或多个证书
user-add-certmapdata 向用户条目中添加一个或多个证书映射信息
user-add-manager 为用户条目添加一个管理者(直属上级)
user-add-passkey 向用户条目中添加一个或多个密钥设备映射(如FIDO Passkey)
user-add-principal 向用户条目添加新的主体别名(principal alias)
user-del 删除用户
user-disable 禁用用户账户
user-enable 启用用户账户
user-find 搜索用户
user-mod 修改用户
user-remove-cert 从用户条目中移除一个或多个证书
user-remove-certmapdata 从用户条目中移除一个或多个证书映射信息
user-remove-manager 从用户条目中移除管理者(直属上级)
user-remove-passkey 从用户条目中移除一个或多个密钥设备映射
user-remove-principal 从用户条目中移除主体别名
user-show 显示用户详细信息
user-status 显示用户账户的锁定状态
user-undel 恢复被删除的用户账户
user-unlock 解锁用户账户
# 获取管理员票据
[root@ldap-001 ~]# kinit admin
Password for [email protected]:
# 查看当前用户的 Kerberos 票据(Ticket)信息
[root@ldap-001 ~]# klist
Ticket cache: KCM:0
Default principal: [email protected]
# 开始时间,到期时间(有效期 24 小时,到期后,需要重新登录)
Valid starting Expires Service principal
06/01/25 14:23:56 06/02/25 14:13:38 krbtgt/[email protected]
# 添加新用户
# ipa user-add 登录用户名 --first=名 --last=姓
[root@ldap-001 ~]# ipa user-add muzilee --first=muzi --last=lee
--------------------
Added user "muzilee"
--------------------
User login: muzilee
First name: muzi
Last name: lee
Full name: muzi lee
Display name: muzi lee
Initials: ml
Home directory: /home/muzilee
GECOS: muzi lee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected] # 注意邮箱地址,后续变更对应用户属性
UID: 608200004
GID: 608200004
Password: False
Member of groups: ipausers
Kerberos keys available: False
# 查询所有用户
[root@ldap-001 ~]# ipa user-find
---------------
2 users matched
---------------
User login: admin
Last name: Administrator
Home directory: /home/admin
Login shell: /bin/bash
Principal name: [email protected]
Principal alias: [email protected], [email protected]
UID: 608200000
GID: 608200000
Account disabled: False
User login: muzilee
First name: muzi
Last name: lee
Home directory: /home/muzilee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
----------------------------
Number of entries returned 2
----------------------------
# 查询指定用户(不管是查询登录用户名、名或姓,都可以查询到)
[root@ldap-001 ~]# ipa user-find muzilee
--------------
1 user matched
--------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /home/muzilee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
----------------------------
Number of entries returned 1
----------------------------
[root@ldap-001 ~]# ipa user-find muzi
--------------
1 user matched
--------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /home/muzilee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
----------------------------
Number of entries returned 1
----------------------------
[root@ldap-001 ~]# ipa user-find lee
--------------
1 user matched
--------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /home/muzilee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
----------------------------
Number of entries returned 1
----------------------------
# 如果查询的用户不存在,返回为 0
[root@ldap-001 ~]# ipa user-find haozi
---------------
0 users matched
---------------
----------------------------
Number of entries returned 0
----------------------------
# 修改用户属性
# ipa user-mod 登录用户名 [email protected]
[root@ldap-001 ~]# ipa user-mod muzilee [email protected]
-----------------------
Modified user "muzilee"
-----------------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /home/muzilee
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected] # 邮箱地址
UID: 608200004
GID: 608200004
Account disabled: False
Password: False
Member of groups: ipausers
Kerberos keys available: False
# 怎么知道对应属性的参数名称了,比如:Email address 等于 --email
# 我们可以通过 ipa help user-mod 获取 ipa 修改用户信息的相关参数
# 修改家目录为 /ldaphome/muzilee
[root@ldap-001 ~]# ipa user-mod muzilee --homedir=/ldaphome/muzilee
-----------------------
Modified user "muzilee"
-----------------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /ldaphome/muzilee # home 目录
Login shell: /bin/sh
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
Password: False
Member of groups: ipausers
Kerberos keys available: False
# 修改默认 shell 为 /bin/bash
[root@ldap-001 ~]# ipa user-mod muzilee --shell=/bin/bash
-----------------------
Modified user "muzilee"
-----------------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /ldaphome/muzilee
Login shell: /bin/bash # 默认 Shell
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200004
GID: 608200004
Account disabled: False
Password: False
Member of groups: ipausers
Kerberos keys available: False
# 查看用户详细信息
[root@ldap-001 ~]# ipa user-show muzilee
User login: muzilee
First name: muzi
Last name: lee
Home directory: /ldaphome/muzilee
Login shell: /bin/bash
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected] # 邮箱
UID: 608200006
GID: 608200006
Account disabled: False
Password: False
Member of groups: ipausers
Kerberos keys available: False
# 默认新建用户是没有密码的,可以通过以下命令设置密码
[root@ldap-001 ~]# echo k2PO3cY4fFGjFS | ipa user-mod muzilee --password
-----------------------
Modified user "muzilee"
-----------------------
User login: muzilee
First name: muzi
Last name: lee
Home directory: /ldaphome/muzilee
Login shell: /bin/bash
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200006
GID: 608200006
Account disabled: False
Password: True # 表示设置密码成功
Member of groups: ipausers
Kerberos keys available: True
# 查看组用户
[root@ldap-001 ~]# ipa group-show admins
Group name: admins
Description: Account administrators group
GID: 608200000
Member users: admin # 只有 admin 一个账号
# 添加 muzilee 至 admins 组,当然也可以通过参数 group-add 添加组
[root@ldap-001 ~]# ipa group-add-member admins --user=muzilee
Group name: admins
Description: Account administrators group
GID: 608200000
Member users: admin, muzilee
-------------------------
Number of members added 1
-------------------------
# 删除用户
# ipa user-del 登录用户名
[root@ldap-001 ~]# ipa user-del muzilee
----------------------
Deleted user "muzilee"
----------------------
# 当然也可以通过 ldapsearch 命令,查询用户信息
[root@ldap-001 ~]# ldapsearch -x uid=admin
# extended LDIF
#
# LDAPv3
# base <dc=rockylinux,dc=lan> (default) with scope subtree
# filter: uid=admin
# requesting: ALL
#
# admin, users, compat, rockylinux.lan
dn: uid=admin,cn=users,cn=compat,dc=rockylinux,dc=lan
objectClass: posixAccount
objectClass: ipaOverrideTarget
objectClass: top
gecos: Administrator
cn: Administrator
uidNumber: 608200000
gidNumber: 608200000
loginShell: /bin/bash
homeDirectory: /home/admin
ipaAnchorUUID:: OklQQTpyb2NreWxpbnV4LmxhbjoyMzEzM2M1ZS01MGE2LTExZjAtYWE5Ny01Mm
U5ZWI3NzNkZmU=
uid: admin
# admin, users, accounts, rockylinux.lan
dn: uid=admin,cn=users,cn=accounts,dc=rockylinux,dc=lan
objectClass: top
objectClass: person
objectClass: posixaccount
objectClass: krbprincipalaux
objectClass: krbticketpolicyaux
objectClass: inetuser
objectClass: ipaobject
objectClass: ipasshuser
objectClass: ipaSshGroupOfPubKeys
objectClass: ipaNTUserAttrs
uid: admin
cn: Administrator
sn: Administrator
uidNumber: 608200000
gidNumber: 608200000
homeDirectory: /home/admin
loginShell: /bin/bash
gecos: Administrator
ipaNTSecurityIdentifier: S-1-5-21-3223399076-1772250745-127116554-500
# search result
search: 2
result: 0 Success
# numResponses: 3
# numEntries: 2
注意:可以看到 admin 用户信息在 cn=accounts
与 cn=compat
中同时存在,本质两个用户是同一个,之所以会出现两个不同账号,是为了兼容各种不同需求的客户端和服务。
全局属性设置
前面我们使用 ipa user-mod muzilee --homedir=/ldaphome/muzilee
修改的只是单个用户的属性,如果需要全局设置,可以使用 ipa config-mod
命令。
# 参数说明
[root@ldap-001 ~]# ipa help config-mod
用法: ipa [全局选项] config-mod [选项]
用于修改FreeIPA的配置选项。
选项说明:
-h, --help 显示此帮助信息并退出
--maxusername=INT 用户名最大长度
--maxhostname=INT 主机名最大长度
--homedirectory=STR 默认的用户家目录路径
--defaultshell=STR 新用户默认的Shell
--defaultgroup=STR 新用户默认所属的组
--emaildomain=STR 默认的电子邮件域名
--searchtimelimit=INT 搜索操作的最大时长(秒),-1或0表示不限时
--searchrecordslimit=INT 搜索返回的最大记录数,-1或0表示不限制
--usersearch=STR 用户搜索时可用于查找的字段列表(以逗号分隔)
--groupsearch=STR 组搜索时可用于查找的字段列表(以逗号分隔)
--enable-migration=BOOL 是否启用迁移模式
--groupobjectclasses=STR 组的默认ObjectClass(以逗号分隔的列表)
--userobjectclasses=STR 用户的默认ObjectClass(以逗号分隔的列表)
--pwdexpnotify=INT 密码即将过期前的提醒天数
--ipaconfigstring=['AllowNThash', 'KDC:Disable Last Success', 'KDC:Disable Lockout',
'KDC:Disable Default Preauth for SPNs', 'EnforceLDAPOTP']
密码插件生成的额外哈希选项
--ipaselinuxusermaporder=STR
SELinux用户优先级顺序(用 $ 分隔)
--ipaselinuxusermapdefault=STR
当SELinux映射规则没有匹配时,默认使用的SELinux用户
--pac-type=['MS-PAC', 'PAD', 'nfs:NONE']
服务默认支持的PAC类型
--user-auth-type=['password', 'radius', 'otp', 'pkinit', 'hardened', 'idp', 'passkey', 'disabled']
默认支持的用户认证类型
--user-default-subid=BOOL 新用户是否默认分配subid(子ID)
--ca-renewal-master-server=STR
IPA证书颁发机构(CA)续期主服务器
--domain-resolution-order=STR
用冒号“:”分隔的域名列表,用于短名自动限定
--enable-sid 新用户和新组自动分配SID
--add-sids 为已有用户和组分配SID
--netbios-name=STR IPA域的NetBIOS名字
--setattr=STR 设置属性键值对,格式为“属性=值”。多值属性将替换全部现有值
--addattr=STR 新增属性键值对,格式为“属性=值”。属性必须符合schema定义
--delattr=STR 删除属性键值对。此项在所有设置和添加操作完成后才被执行
--rights 显示该条目的访问权限(需与 --all 一起使用)。更多细节见ipa手册
--all 从服务器获取并显示所有属性,影响命令输出
--raw 按服务器中实际存储格式打印条目,仅影响输出格式
# 修改默认家目录
[root@ldap-001 ~]# ipa config-mod --homedirectory=/ldaphome
Maximum username length: 32
Maximum hostname length: 64
Home directory base: /ldaphome
Default shell: /bin/sh
Default users group: ipausers
Default e-mail domain: rockylinux.lan
Search time limit: 2
Search size limit: 100
User search fields: uid,givenname,sn,telephonenumber,ou,title
Group search fields: cn,description
Enable migration mode: False
Certificate Subject base: O=ROCKYLINUX.LAN
Password Expiration Notification (days): 4
Password plugin features: AllowNThash, KDC:Disable Last Success
SELinux user map order: guest_u:s0$xguest_u:s0$user_u:s0$staff_u:s0-s0:c0.c1023$sysadm_u:s0-s0:c0.c1023$unconfined_u:s0-s0:c0.c1023
Default SELinux user: unconfined_u:s0-s0:c0.c1023
Default PAC types: MS-PAC, nfs:NONE
IPA masters: ldap-001.rockylinux.lan
IPA master capable of PKINIT: ldap-001.rockylinux.lan
IPA CA servers: ldap-001.rockylinux.lan
IPA CA renewal master: ldap-001.rockylinux.lan
# 修改默认 Shell
[root@ldap-001 ~]# ipa config-mod --defaultshell=/bin/bash
Maximum username length: 32
Maximum hostname length: 64
Home directory base: /ldaphome
Default shell: /bin/bash
Default users group: ipausers
Default e-mail domain: rockylinux.lan
Search time limit: 2
Search size limit: 100
User search fields: uid,givenname,sn,telephonenumber,ou,title
Group search fields: cn,description
Enable migration mode: False
Certificate Subject base: O=ROCKYLINUX.LAN
Password Expiration Notification (days): 4
Password plugin features: AllowNThash, KDC:Disable Last Success
SELinux user map order: guest_u:s0$xguest_u:s0$user_u:s0$staff_u:s0-s0:c0.c1023$sysadm_u:s0-s0:c0.c1023$unconfined_u:s0-s0:c0.c1023
Default SELinux user: unconfined_u:s0-s0:c0.c1023
Default PAC types: MS-PAC, nfs:NONE
IPA masters: ldap-001.rockylinux.lan
IPA master capable of PKINIT: ldap-001.rockylinux.lan
IPA CA servers: ldap-001.rockylinux.lan
IPA CA renewal master: ldap-001.rockylinux.lan
# 修改 Email 域名
[root@ldap-001 ~]# ipa config-mod --emaildomain=vip.rockylinux.cn
Maximum username length: 32
Maximum hostname length: 64
Home directory base: /ldaphome
Default shell: /bin/bash
Default users group: ipausers
Default e-mail domain: vip.rockylinux.cn
Search time limit: 2
Search size limit: 100
User search fields: uid,givenname,sn,telephonenumber,ou,title
Group search fields: cn,description
Enable migration mode: False
Certificate Subject base: O=ROCKYLINUX.LAN
Password Expiration Notification (days): 4
Password plugin features: AllowNThash, KDC:Disable Last Success
SELinux user map order: guest_u:s0$xguest_u:s0$user_u:s0$staff_u:s0-s0:c0.c1023$sysadm_u:s0-s0:c0.c1023$unconfined_u:s0-s0:c0.c1023
Default SELinux user: unconfined_u:s0-s0:c0.c1023
Default PAC types: MS-PAC, nfs:NONE
IPA masters: ldap-001.rockylinux.lan
IPA master capable of PKINIT: ldap-001.rockylinux.lan
IPA CA servers: ldap-001.rockylinux.lan
IPA CA renewal master: ldap-001.rockylinux.lan
# 此时我们再创建用户,对应用户的 Home directory、Login Shell、Email address 地址后缀,就变成我们全局设置的。
[root@ldap-001 ~]# ipa user-add muzilee --first=muzi --last=lee
--------------------
Added user "muzilee"
--------------------
User login: muzilee
First name: muzi
Last name: lee
Full name: muzi lee
Display name: muzi lee
Initials: ml
Home directory: /ldaphome/muzilee
GECOS: muzi lee
Login shell: /bin/bash
Principal name: [email protected]
Principal alias: [email protected]
Email address: [email protected]
UID: 608200006
GID: 608200006
Password: False
Member of groups: ipausers
Kerberos keys available: False
ipa 命令
ipa
命令拥有丰富的参数和选项,建议在实际使用过程中结合需求逐步学习和掌握。
[root@ldap-001 ~]# ipa help topics
automember Auto Membership Rule.
automount Automount
ca Manage Certificate Authorities
caacl Manage CA ACL rules.
cert IPA certificate operations
certmap Certificate Identity Mapping
certprofile Manage Certificate Profiles
config Server configuration
delegation Group to Group Delegation
dns Domain Name System (DNS)
domainlevel Raise the IPA Domain Level.
group Groups of users
hbac Host-based access control commands
hbactest Simulate use of Host-based access controls
host Hosts/Machines
hostgroup Groups of hosts.
idp External Identity Provider References
idrange ID ranges
idviews ID Views
krbtpolicy Kerberos ticket policy
location IPA locations
migration Migration to IPA
misc Misc plug-ins
netgroup Netgroups
otp One time password commands
passkeyconfig Passkey configuration
passwd Set a user''s password
permission Permissions
ping Ping the remote IPA server to ensure it is running.
pkinit Kerberos PKINIT feature status reporting tools.
privilege Privileges
pwpolicy Password policy
radiusproxy RADIUS Proxy Servers
realmdomains Realm domains
role Roles
schema API Schema
selfservice Self-service Permissions
selinuxusermap SELinux User Mapping
server IPA servers
serverrole IPA server roles
service Services
servicedelegation Service Constrained Delegation
stageuser Stageusers
subid Subordinate ids
sudo commands for controlling sudo configuration
topology Topology
trust Cross-realm trusts
user Users
vault Vaults
# 按 Table 键,获取所有命令
[root@ldap-001 ~]# ipa
Display all 457 possibilities? (y or n)
automember-add command-show help otptoken-add service-add-delegation sudorule-disable
automember-add-condition config-mod host-add otptoken-add-managedby service-add-host sudorule-enable
automember-default-group-remove config-show host-add-cert otptoken-add-yubikey service-add-principal sudorule-find
automember-default-group-set console host-add-delegation otptoken-del service-add-smb sudorule-mod
automember-default-group-show delegation-add host-add-managedby otptoken-find service-allow-add-delegation sudorule-remove-allow-command
automember-del delegation-del host-add-principal otptoken-mod service-allow-create-keytab sudorule-remove-deny-command
automember-find delegation-find host-allow-add-delegation otptoken-remove-managedby service-allow-retrieve-keytab sudorule-remove-host
automember-find-orphans delegation-mod host-allow-create-keytab otptoken-show service-del sudorule-remove-option
automember-mod delegation-show host-allow-retrieve-keytab otptoken-sync service-disable sudorule-remove-runasgroup
automember-rebuild dns-update-system-records host-del output-find service-disallow-add-delegation sudorule-remove-runasuser
automember-remove-condition dnsconfig-mod host-disable output-show service-disallow-create-keytab sudorule-remove-user
automember-show dnsconfig-show host-disallow-add-delegation param-find service-disallow-retrieve-keytab sudorule-show
automountkey-add dnsforwardzone-add host-disallow-create-keytab param-show service-find topic-find
automountkey-del dnsforwardzone-add-permission host-disallow-retrieve-keytab passkeyconfig-mod service-mod topic-show
automountkey-find dnsforwardzone-del host-find passkeyconfig-show service-remove-cert topologysegment-add
automountkey-mod dnsforwardzone-disable host-mod passwd service-remove-delegation topologysegment-del
automountkey-show dnsforwardzone-enable host-remove-cert permission-add service-remove-host topologysegment-find
automountlocation-add dnsforwardzone-find host-remove-delegation permission-del service-remove-principal topologysegment-mod
automountlocation-del dnsforwardzone-mod host-remove-managedby permission-find service-show topologysegment-reinitialize
automountlocation-find dnsforwardzone-remove-permission host-remove-principal permission-mod servicedelegationrule-add topologysegment-show
automountlocation-import dnsforwardzone-show host-show permission-show servicedelegationrule-add-member topologysuffix-find
automountlocation-show dnsrecord-add hostgroup-add ping servicedelegationrule-add-target topologysuffix-show
automountlocation-tofiles dnsrecord-del hostgroup-add-member pkinit-status servicedelegationrule-del topologysuffix-verify
automountmap-add dnsrecord-find hostgroup-add-member-manager plugins servicedelegationrule-find trust-add
automountmap-add-indirect dnsrecord-mod hostgroup-del privilege-add servicedelegationrule-remove-member trust-del
automountmap-del dnsrecord-show hostgroup-find privilege-add-permission servicedelegationrule-remove-target trust-fetch-domains
automountmap-find dnsserver-find hostgroup-mod privilege-del servicedelegationrule-show trust-find
automountmap-mod dnsserver-mod hostgroup-remove-member privilege-find servicedelegationtarget-add trust-mod
automountmap-show dnsserver-show hostgroup-remove-member-manager privilege-mod servicedelegationtarget-add-member trust-show
ca-add dnszone-add hostgroup-show privilege-remove-permission servicedelegationtarget-del trustconfig-mod
ca-del dnszone-add-permission idoverridegroup-add privilege-show servicedelegationtarget-find trustconfig-show
ca-disable dnszone-del idoverridegroup-del pwpolicy-add servicedelegationtarget-remove-member trustdomain-del
ca-enable dnszone-disable idoverridegroup-find pwpolicy-del servicedelegationtarget-show trustdomain-disable
ca-find dnszone-enable idoverridegroup-mod pwpolicy-find show-mappings trustdomain-enable
ca-mod dnszone-find idoverridegroup-show pwpolicy-mod stageuser-activate trustdomain-find
ca-show dnszone-mod idoverrideuser-add pwpolicy-show stageuser-add user-add
caacl-add dnszone-remove-permission idoverrideuser-add-cert radiusproxy-add stageuser-add-cert user-add-cert
caacl-add-ca dnszone-show idoverrideuser-del radiusproxy-del stageuser-add-certmapdata user-add-certmapdata
caacl-add-host domainlevel-get idoverrideuser-find radiusproxy-find stageuser-add-manager user-add-manager
caacl-add-profile domainlevel-set idoverrideuser-mod radiusproxy-mod stageuser-add-passkey user-add-passkey
caacl-add-service env idoverrideuser-remove-cert radiusproxy-show stageuser-add-principal user-add-principal
caacl-add-user group-add idoverrideuser-show realmdomains-mod stageuser-del user-del
caacl-del group-add-member idp-add realmdomains-show stageuser-find user-disable
caacl-disable group-add-member-manager idp-del role-add stageuser-mod user-enable
caacl-enable group-del idp-find role-add-member stageuser-remove-cert user-find
caacl-find group-detach idp-mod role-add-privilege stageuser-remove-certmapdata user-mod
caacl-mod group-find idp-show role-del stageuser-remove-manager user-remove-cert
caacl-remove-ca group-mod idrange-add role-find stageuser-remove-passkey user-remove-certmapdata
caacl-remove-host group-remove-member idrange-del role-mod stageuser-remove-principal user-remove-manager
caacl-remove-profile group-remove-member-manager idrange-find role-remove-member stageuser-show user-remove-passkey
caacl-remove-service group-show idrange-mod role-remove-privilege subid-find user-remove-principal
caacl-remove-user hbacrule-add idrange-show role-show subid-generate user-show
caacl-show hbacrule-add-host idview-add selfservice-add subid-match user-stage
cert-find hbacrule-add-service idview-apply selfservice-del subid-mod user-status
cert-remove-hold hbacrule-add-user idview-del selfservice-find subid-show user-undel
cert-request hbacrule-del idview-find selfservice-mod subid-stats user-unlock
cert-revoke hbacrule-disable idview-mod selfservice-show sudocmd-add vault-add
cert-show hbacrule-enable idview-show selinuxusermap-add sudocmd-del vault-add-member
cert-status hbacrule-find idview-unapply selinuxusermap-add-host sudocmd-find vault-add-owner
certmap-match hbacrule-mod krbtpolicy-mod selinuxusermap-add-user sudocmd-mod vault-archive
certmapconfig-mod hbacrule-remove-host krbtpolicy-reset selinuxusermap-del sudocmd-show vault-del
certmapconfig-show hbacrule-remove-service krbtpolicy-show selinuxusermap-disable sudocmdgroup-add vault-find
certmaprule-add hbacrule-remove-user location-add selinuxusermap-enable sudocmdgroup-add-member vault-mod
certmaprule-del hbacrule-show location-del selinuxusermap-find sudocmdgroup-del vault-remove-member
certmaprule-disable hbacsvc-add location-find selinuxusermap-mod sudocmdgroup-find vault-remove-owner
certmaprule-enable hbacsvc-del location-mod selinuxusermap-remove-host sudocmdgroup-mod vault-retrieve
certmaprule-find hbacsvc-find location-show selinuxusermap-remove-user sudocmdgroup-remove-member vault-show
certmaprule-mod hbacsvc-mod migrate-ds selinuxusermap-show sudocmdgroup-show vaultconfig-show
certmaprule-show hbacsvc-show netgroup-add server-del sudorule-add vaultcontainer-add-owner
certprofile-del hbacsvcgroup-add netgroup-add-member server-find sudorule-add-allow-command vaultcontainer-del
certprofile-find hbacsvcgroup-add-member netgroup-del server-mod sudorule-add-deny-command vaultcontainer-remove-owner
certprofile-import hbacsvcgroup-del netgroup-find server-role-find sudorule-add-host vaultcontainer-show
certprofile-mod hbacsvcgroup-find netgroup-mod server-role-show sudorule-add-option
certprofile-show hbacsvcgroup-mod netgroup-remove-member server-show sudorule-add-runasgroup
class-find hbacsvcgroup-remove-member netgroup-show server-state sudorule-add-runasuser
class-show hbacsvcgroup-show otpconfig-mod service-add sudorule-add-user
command-find hbactest otpconfig-show service-add-cert sudorule-del
# 查询所有命令详细信息
[root@ldap-001 ~]# ipa help commands
automember-add Add an automember rule.
automember-add-condition Add conditions to an automember rule.
automember-default-group-remove Remove default (fallback) group for all unmatched entries.
automember-default-group-set Set default (fallback) group for all unmatched entries.
automember-default-group-show Display information about the default (fallback) automember groups.
automember-del Delete an automember rule.
automember-find Search for automember rules.
.....(略)
FreeIPA Web UI
前面提到的全局属性设置,以及用户、组、计算机等对象的增删改查,都可以通过 FreeIPA 提供的 Web UI 完成。您只需在浏览器中访问 https://ldap-001.rockylinux.lan 即可。需要注意的是,由于使用的是 FreeIPA 自签发的 TLS 证书,浏览器可能会提示连接不安全。此时,您可以将该证书导入本地信任列表,以提升浏览器连接的安全性。
用户名:admin
密码:xxx
详细用户管理界面:
后续,木子将结合 Let’s Encrypt,讲解如何为 FreeIPA Web UI 配置 SSL/TLS 证书。
参考文献
[1] Quick_Start_Guide — FreeIPA documentation
[2] docs.oracle.com/cd/E19253-01/819-7060/ldapsetup-1/index.html
[3] Linux 域身份、身份验证和策略指南 | Red Hat Enterprise Linux | 7 | Red Hat Documentation
[4] 5.4. The IdM Web UI | Linux 域身份、身份验证和策略指南 | Red Hat Enterprise Linux | 7 | Red Hat Documentation
